CQD

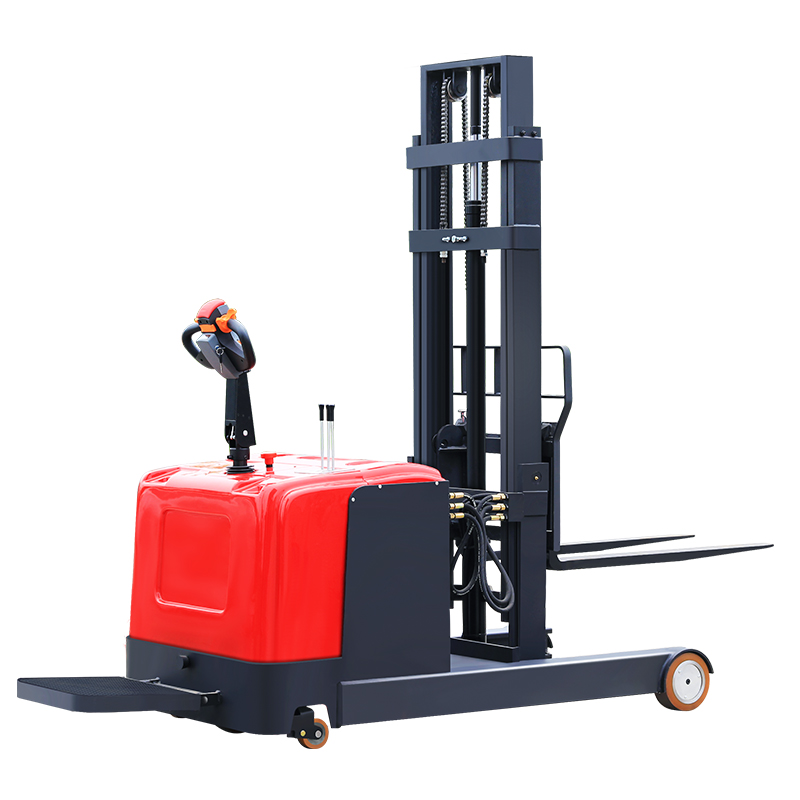

电动前移式叉车Electric reach forklift
产品简介
1.电动升降，电动行走
2.门架可前移回缩、倾仰
3.可折叠式防滑踏板
4.型钢门架，承载强度更高
5.实心锻打货叉，货叉外宽可调节
6.多路阀控制货叉升降、门架前移回缩及倾仰，控制精度高
7.配备失电刹车、再生制动、反接制动、坡道防下滑制动等多重制动功能
8.配备智能充电机，充满自动断电
型号Model | CQD15 | CQD20 |
性能Performance | 负载能力Maximum load capacity | kg | 1500 | 2000 |
载荷中心距Load center | mm | 500 | 500 |
起升高度Maximum lifting height | mm | 见门架参数 | 见门架参数 |
前移距离Forward distance | mm | 500 | 500 |
货叉倾斜范围Tilt of fork（forward/backward） | ° | 3/5 | 3/5 |
无负载行驶速度Driving speed (unload) | km/h | 5 | 5 |
负载行驶速度Driving speed (load) | km/h | 4.75 | 4.75 |
无负载起升速度Lifting speed (unload) | mm/s | 115 | 115 |
负载起升速度Lifting speed (load) | mm/s | 90 | 90 |
无负载下降速度Lowering speed (unload) | mm/s | 100 | 100 |
负载下降速度Lowering speed (load) | mm/s | 80 | 80 |
无负载最大爬坡能力Max climbing ability (unload ) | % | 7 | 7 |
负载最大爬坡能力Max climbing ability (load ) | % | 6 | 6 |
整车重量 Weight (with battery) | kg | ≈1600 | ≈1700 |
尺寸Dimensions | 整车长度（门架没前移不含货叉）Overall length ( no reach,without fork) | mm | 2000 | 2000 |
整车长度（门架没前移含货叉）Overall length ( no reach,with fork) | mm | 2570 | 2570 |
门架前移后整车长度Overall length (mast reach,with fork) |
| 3070 | 3070 |
整车宽度Overall width | mm | 1050 | 1050 |
门架闭合高度Height of mast closed | mm | 见门架参数 | 见门架参数 |
起升时门架最大高度Height of mast open(incl Load-Backrest) | mm | 见门架参数 | 见门架参数 |
轴距Wheelbase | mm | 1610 | 1610 |
货叉长度Fork length | mm | 1070 | 1070 |
货叉面宽度Fork width | mm | 100 | 100 |
货叉降至最低高度Fork lowered height | mm | 50 | 50 |
货叉外侧宽度可调范围Fork spread width | mm | 210-680 | 210-680 |
最小离地间隙Minimum ground clearance | mm | 60 | 60 |
最小转弯半径理论值（合起踏板）Turning radius (Close the pedal ) | mm | 1800 | 1800 |
最小转弯半径理论值（展开踏板）Turning radius( open the pedal) | mm | 2200 | 2200 |
直角堆垛通道宽度(托盘1000x1200)1200跨货叉方向Aisle width for pallet 1000*1200crossway | mm | 3300 | 3300 |
门架类型
Mast type | 起升高度(mm)
Maximum lifting height | 门架闭合高度(mm)
Height of mast closed | 起升时门架最大高度(mm)
Height of mast open(incl Load-Backrest) |
一级门架
Single mast | 1600 | 2100 | 2100 |
二级门架
Duplex mast | 2000 | 1600 | 2550 |
2500 | 1900 | 3050 |
3000 | 2100 | 3550 |
3500 | 2300 | 4050 |
三级门架
Triplex mast | 4000 | 1950 | 4550 |
4500 | 2100 | 5050 |
5000 | 2300 | 5550 |
