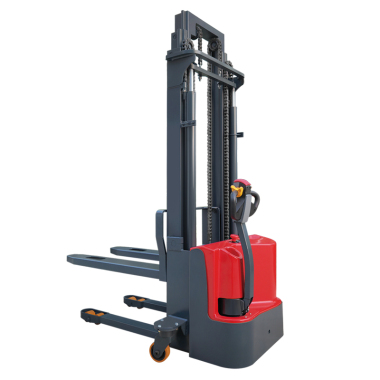

电动托盘堆垛车Electric pallet stacker
产品简介
1.电动升降，电动行走
2.三级门架，双提升油缸
3.实心扁钢支撑腿，承载强度更高
4.C+J+J门架，承载强度更高
5.外扩辅助轮（升高4.5米及5米车型），高位更稳定
6.配备快慢档切换功能
7.配备失电刹车、再生制动、反接制动、坡道防下滑制动等多重制动功能
8.内置智能充电机，充满自动断电
型号Model | FBD15 |
性能Performance | 负载能力Maximum load capacity | kg | 1500 |
载荷中心距Load center | mm | 500 |
起升高度Maximum lifting height | mm | 见门架参数 |
无负载行驶速度Driving speed (unload) | km/h | 5 |
负载行驶速度Driving speed (load) | km/h | 4.5 |
无负载起升速度Lifting speed (unload) | mm/s | 110 |
负载起升速度Lifting speed (load) | mm/s | 80 |
无负载下降速度Lowering speed (unload) | mm/s | 105 |
负载下降速度Lowering speed (load) | mm/s | 103 |
整车重量 Weight (with battery) | kg | ≈900 |
尺寸Dimensions | 整车长度Overall length ( with fork) | mm | 1800 |
整车宽度（辅助轮不外扩/外扩）Overall width（With or without external auxiliary wheels） | mm | 800/1200 |
门架闭合高度Height of mast closed | mm | 见门架参数 |
起升时门架最大高度Height of mast open(incl Load-Backrest) | mm | 见门架参数 |
轴距Wheelbase | mm | 1300 |
货叉长度Fork length | mm | 1100 |
货叉面宽度Fork width | mm | 170 |
货叉降至最低高度Fork lowered height | mm | 90 |
货叉外侧宽度Fork outside width | mm | 680 |
最小离地间隙Minimum ground clearance | mm | 15 |
最小转弯半径理论值Turning radius | mm | 1500 |
直角堆垛通道宽度(托盘1000x1200)1200跨货叉方向Aisle width for pallet 1000*1200crossway | mm | 2100 |
门架类型
Mast type | 起升高度(mm)
Maximum lifting height | 门架闭合高度(mm)
Height of mast closed | 起升时门架最大高度(mm)
Height of mast open(incl Load-Backrest) |
三级门架
Triplex mast | 4000 | 1940 | 4600 |
4500 | 2080 | 5100 |
5000 | 2300 | 5600 |
