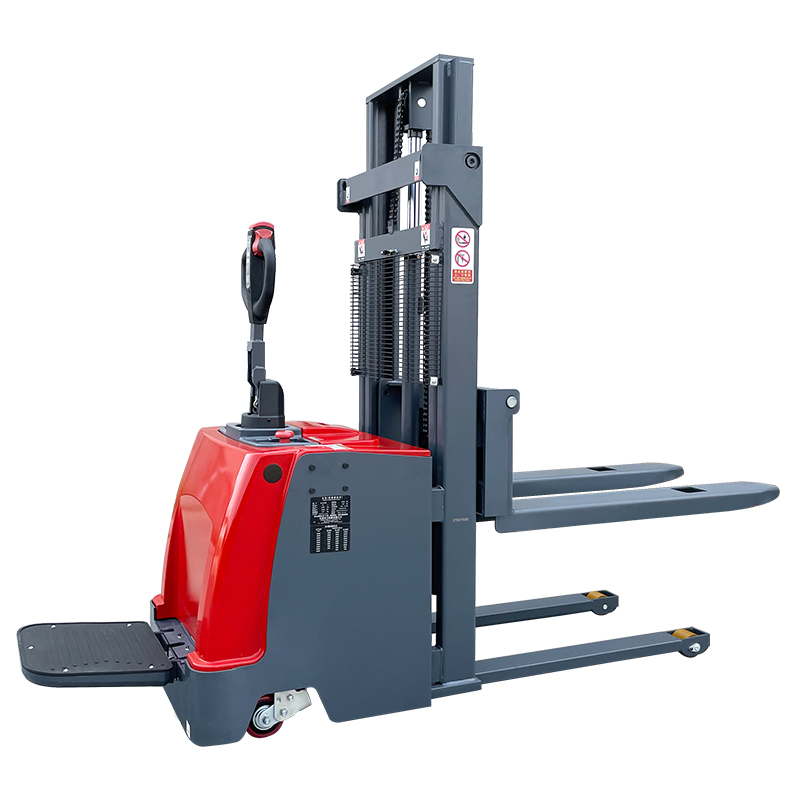

KLD16EG
电动托盘堆垛车Electric pallet stacker
产品简介
1.电动升降，电动行走
2.可折叠式防滑踏板
3.开放式电池箱体，可选配更大容量电池
4.套筒式货叉，货叉外宽可调节
5.采用国标1244板式复合链条代替传统滚子链条
6.ALBRIGHT接触器、AMP防水电源接插件
7.无钥匙密码锁启动
8.具备一键龟速和直立龟速功能
9.高位限速功能，货叉处于高位时行驶速度自动降低
10.配备失电刹车、再生制动、反接制动、坡道防下滑制动等多重制动功能
11.配备智能充电机，充满自动断电
型号Model | KLD16EG |
性能Performance | 负载能力Maximum load capacity |
| kg | 1600 |
载荷中心距Load center | Q | mm | 600 |
起升高度Maximum lifting height | H3 | mm | 见门架参数 |
无负载行驶速度Driving speed (unload) |
| km/h | 4.1 |
负载行驶速度Driving speed (load) |
| km/h | 3.7 |
无负载起升速度Lifting speed (unload) |
| mm/s | 121 |
负载起升速度Lifting speed (load) |
| mm/s | 81 |
无负载下降速度Lowering speed (unload) |
| mm/s | 105 |
负载下降速度Lowering speed (load) |
| mm/s | 103 |
无负载最大爬坡能力Max climbing ability (unload ) |
| % | 7 |
负载最大爬坡能力Max climbing ability (load ) |
| % | 5 |
整车重量 Weight (with battery) |
| kg | ≈700 |
尺寸Dimensions | 整车长度（合起踏板）Overall length (Close the pedal ) | L | mm | 2172 |
整车长度（展开踏板）Overall length ( open the pedal) |
| mm | 2590 |
整车宽度Overall width | B | mm | 782 |
门架闭合高度Height of mast closed | H1 | mm | 见门架参数 |
起升时门架最大高度Height of mast open(incl Load-Backrest) | H4 | mm | 见门架参数 |
轴距Wheelbase | Y | mm | 1480 |
货叉长度Fork length |
| mm | 1150 |
货叉面宽度Fork width |
| mm | 170 |
货叉降至最低高度Fork lowered height | S | mm | 90 |
货叉外侧宽度可调范围Fork spread width |
| mm | 360-680 |
最小离地间隙Minimum ground clearance |
| mm | 15 |
最小转弯半径理论值（合起踏板）Turning radius (Close the pedal ) | Wa | mm | 1813 |
最小转弯半径理论值（展开踏板）Turning radius( open the pedal) | Wa1 | mm | 2207 |
直角堆垛通道宽度(托盘1000x1200)1200跨货叉方向Aisle width for pallet 1000*1200crossway | Asts | mm | 2490 |
门架类型
Mast type | 起升高度(mm)
Maximum lifting height | 门架闭合高度(mm)
Height of mast closed | 起升时门架最大高度(mm)
Height of mast open(incl Load-Backrest) |
一级门架
Single mast | 1600 | 2090 | 2090 |
二级门架
Duplex mast | 2000 | 1480 | 2460 |
2500 | 1730 | 2960 |
3000 | 1980 | 3460 |
3500 | 2230 | 3960 |
