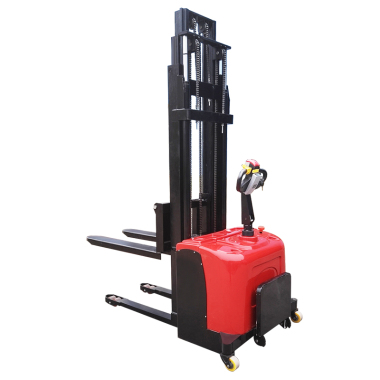

CDD20
电动托盘堆垛车Electric pallet stacker
产品简介
1.电动升降，电动行走
2.可折叠式防滑踏板
3.三级门架，双提升油缸
4.实心扁钢支撑腿，承载强度更高
5.C+J+J门架，承载强度更高
6.外扩辅助轮（升高4.5米及5米车型），高位更稳定
7.配备失电刹车、再生制动、反接制动、坡道防下滑制动等多重制动功能
8.配备智能充电机，充满自动断电
型号Model | CDD20 |
性能Performance | 负载能力Maximum load capacity | kg | 2000 |
载荷中心距Load center | mm | 600 |
起升高度Maximum lifting height | mm | 见门架参数 |
无负载行驶速度Driving speed (unload) | km/h | 5 |
负载行驶速度Driving speed (load) | km/h | 3 |
无负载起升速度Lifting speed (unload) | mm/s | 125 |
负载起升速度Lifting speed (load) | mm/s | 90 |
无负载下降速度Lowering speed (unload) | mm/s | 80 |
负载下降速度Lowering speed (load) | mm/s | 100 |
无负载最大爬坡能力Max climbing ability (unload ) | % | 7 |
负载最大爬坡能力Max climbing ability (load ) | % | 5 |
整车重量 Weight (with battery) | kg | ≈880 |
尺寸Dimensions | 整车长度（合起踏板）Overall length (Close the pedal ) | mm | 2050 |
整车长度（展开踏板）Overall length ( open the pedal) | mm | 2450 |
整车宽度（辅助轮不外扩/外扩）Overall width（With or without external auxiliary wheels） | mm | 850/1150 |
门架闭合高度Height of mast closed | mm | 见门架参数 |
起升时门架最大高度Height of mast open(incl Load-Backrest) | mm | 见门架参数 |
轴距Wheelbase | mm | 1480 |
货叉长度Fork length | mm | 1100 |
货叉面宽度Fork width | mm | 170 |
货叉降至最低高度Fork lowered height | mm | 90 |
货叉外侧宽度可调范围Fork spread width | mm | 360-680 |
最小离地间隙Minimum ground clearance | mm | 20 |
最小转弯半径理论值（合起踏板）Turning radius (Close the pedal ) | mm | 1730 |
最小转弯半径理论值（展开踏板）Turning radius( open the pedal) | mm | 2130 |
直角堆垛通道宽度(托盘1000x1200)1200跨货叉方向Aisle width for pallet 1000*1200crossway | mm | 2450 |
门架类型
Mast type | 起升高度(mm)
Maximum lifting height | 门架闭合高度(mm)
Height of mast closed | 起升时门架最大高度(mm)
Height of mast open(incl Load-Backrest) |
三级门架
Triplex mast | 4000 | 1900 | 4550 |
4500 | 2100 | 5050 |
5000 | 2300 | 5550 |
