KLA-A

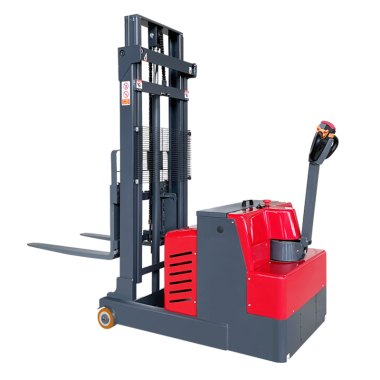

电动平衡重式叉车Electric counterbalanced forklift
产品简介
1.电动升降，电动行走
2.配重式，货叉下方无支腿，适用各类工况
3.短轴距轻量化设计，适用狭小空间及楼层作业
4.实心锻打货叉，货叉外宽可调节
5.采用国标1244板式复合链条代替传统滚子链条
6.开放式电池箱体，可选配更大容量电池
7.ALBRIGHT接触器、AMP防水电源接插件
8. 具备直立龟速功能，便于狭小空间操作
9.配备失电刹车、再生制动、反接制动、坡道防下滑制动等多重制动功能
10.配备智能充电机，充满自动断电
型号Model | KLA08A | KLA10A | KLA12A |
性能Performance | 负载能力Maximum load capacity |
| kg | 800 | 1000 | 1200 |
载荷中心距Load center | Q | mm | 450 | 450 | 450 |
起升高度Maximum lifting height | H3 | mm | 见门架参数 | 见门架参数 | 见门架参数 |
无负载行驶速度Driving speed (unload) |
| km/h | 5.2 | 5.2 | 5.2 |
负载行驶速度Driving speed (load) |
| km/h | 4.8 | 4.8 | 4.8 |
无负载起升速度Lifting speed (unload) |
| mm/s | 121 | 121 | 121 |
负载起升速度Lifting speed (load) |
| mm/s | 81 | 81 | 81 |
无负载下降速度Lowering speed (unload) |
| mm/s | 105 | 105 | 105 |
负载下降速度Lowering speed (load) |
| mm/s | 103 | 103 | 103 |
整车重量 Weight (with battery) |
| kg | ≈1000 | ≈1150 | ≈1300 |
尺寸Dimensions | 整车长度Overall length ( with fork) | L | mm | 2375 | 2375 | 2375 |
整车宽度Overall width | B | mm | 940 | 940 | 940 |
门架闭合高度Height of mast closed | H1 | mm | 见门架参数 | 见门架参数 | 见门架参数 |
起升时门架最大高度Height of mast open(incl Load-Backrest) | H4 | mm | 见门架参数 | 见门架参数 | 见门架参数 |
轴距Wheelbase | Y | mm | 1145 | 1145 | 1145 |
货叉长度Fork length |
| mm | 920 | 920 | 920 |
货叉面宽度Fork width |
| mm | 100 | 100 | 100 |
货叉降至最低高度Fork lowered height | S | mm | 50 | 50 | 50 |
货叉外侧宽度可调范围Fork spread width |
| mm | 210-670 | 210-670 | 210-670 |
最小离地间隙Minimum ground clearance |
| mm | 40 | 40 | 40 |
最小转弯半径理论值Turning radius | Wa | mm | 1380 | 1380 | 1380 |
直角堆垛通道宽度(托盘1000x1200)1200跨货叉方向Aisle width for pallet 1000*1200crossway | Asts | mm | 2755 | 2755 | 2755 |
门架类型
Mast type | 起升高度(mm)
Maximum lifting height | 门架闭合高度(mm)
Height of mast closed | 起升时门架最大高度(mm)
Height of mast open(incl Load-Backrest) |
一级门架
Single mast | 1600 | 2070 | 2376 |
二级门架
Duplex mast | 2000 | 1470 | 2766 |
2500 | 1720 | 3266 |
3000 | 1970 | 3766 |
