KLT-D

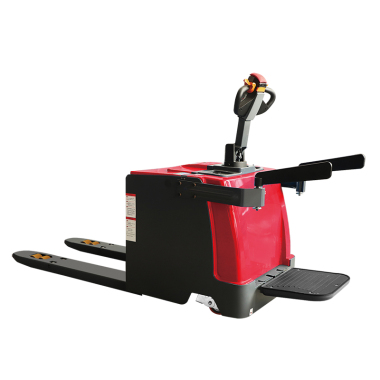

电动托盘搬运车Electric pallet truck
产品简介
1.电动升降，电动行走
2.可折叠式防滑踏板
3.开放式电池箱体，160AH组合电池
4. ALBRIGHT接触器、AMP防水电源接插件
5.配备智能充电机，充满自动断电
6.配备失电刹车、再生制动、反接制动、坡道防下滑制动等多重制动功能
7. 可选配EPS电子助力转向
型号Model | KLT20D | KLT25D | KLT30D |
性能Performance | 负载能力Maximum load capacity | kg | 2000 | 2500 | 3000 |
| 载荷中心距Load center | mm | 600 | 600 | 600 |
| 起升高度Maximum lifting height | mm | 205 | 205 | 205 |
| 无负载行驶速度Driving speed (unload) | km/h | 5.5 | 5.5 | 5.5 |
| 负载行驶速度Driving speed (load) | km/h | 5 | 5 | 5 |
| 无负载起升速度Lifting speed (unload) | mm/s | 25 | 25 | 25 |
| 负载起升速度Lifting speed (load) | mm/s | 20 | 20 | 20 |
| 无负载下降速度Lowering speed (unload) | mm/s | 25 | 25 | 25 |
| 负载下降速度Lowering speed (load) | mm/s | 40 | 40 | 40 |
| 无负载最大爬坡能力Max climbing ability (unload ) | % | 5 | 5 | 5 |
| 负载最大爬坡能力Max climbing ability (load ) | % | 3 | 3 | 3 |
| 整车重量 Weight (with battery) | kg | ≈650 | ≈660 | ≈670 |
尺寸Dimensions | 整车长度（合起踏板）Overall length (Close the pedal ) | mm | 1995 | 1995 | 1995 |
| 整车长度（展开踏板）Overall length ( open the pedal) | mm | 2414 | 2414 | 2414 |
| 整车宽度Overall width | mm | 782 | 782 | 782 |
| 轴距Wheelbase | mm | 1465 | 1465 | 1465 |
| 货叉长度Fork length | mm | 1150 | 1150 | 1150 |
| 货叉面宽度Fork width | mm | 170 | 170 | 170 |
| 货叉降至最低高度Fork lowered height | mm | 85 | 85 | 85 |
| 货叉外侧宽度Fork outside width | mm | 680 | 680 | 680 |
| 最小离地间隙Minimum ground clearance | mm | 5 | 5 | 5 |
| 最小转弯半径理论值（合起踏板）Turning radius (Close the pedal ) | mm | 1770 | 1770 | 1770 |
| 最小转弯半径理论值（展开踏板）Turning radius( open the pedal) | mm | 2170 | 2170 | 2170 |
| 直角堆垛通道宽度(托盘1000x1200)1200跨货叉方向Aisle width for pallet 1000*1200crossway | mm | 2360 | 2360 | 2360 |
